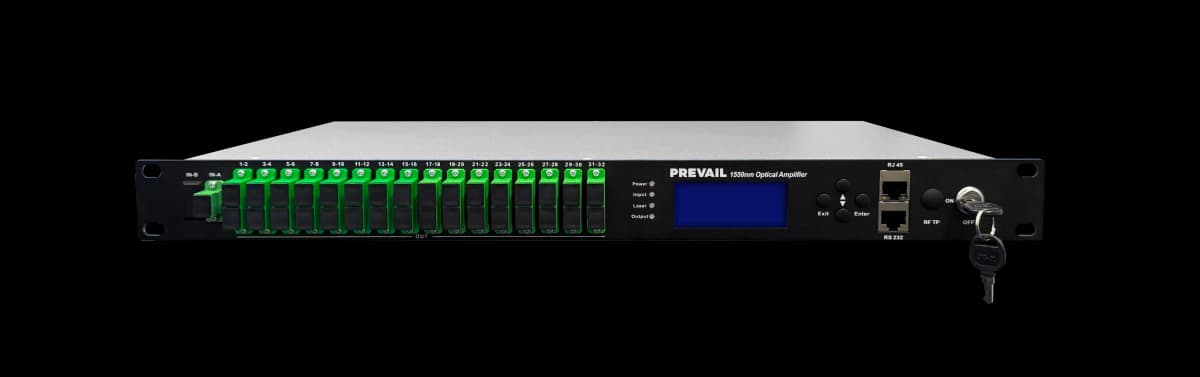

• High-Power EDFA: Erbium-ytterbium co-doped fiber with ≤37 dBm output and ≤6.0 dB noise figure.
• Wide Input Range: -10 to +10 dBm (CATV), stable output (±0.5 dB).
• Flexible Configuration:
• 32 output ports (SC/APC or LC/APC).
• Optional optical switch (≤500ms switching, ≤1.3dB loss).
• Dual Power Supply: AC (100–240V) or DC (-36V to +72V), ≤50W consumption.
• Smart Monitoring:
• LCD screen for real-time power/temperature/alarm data.
• WEB/SNMP management (IP, thresholds, firmware updates).
• Robust Design: 1RU 19" rack-mount, operates at -5°C to +45°C.
